1.2.1 Remote file access performance

AcuServer provides excellent network file access performance by using RPC as the principal communication protocol. Here's why.

With the exception of a few unusual systems, remote file access always takes significantly more time than the same access made to a local file. It is not unusual for network overhead to add five fold or more to the time required to complete a common file action.

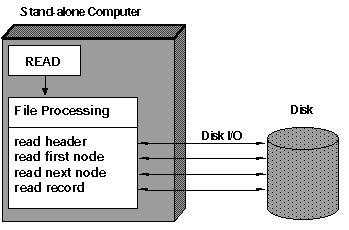

Processing a READ on a local file.

As the preceding drawing illustrates, a file access request--in this case a READ--can require multiple disk I/O actions. When these multiple disk actions are executed across the network, overhead is added to every I/O action.

Some network protocols, notably NFS (Network File System), require that each disk action be handled as a separate network transaction.

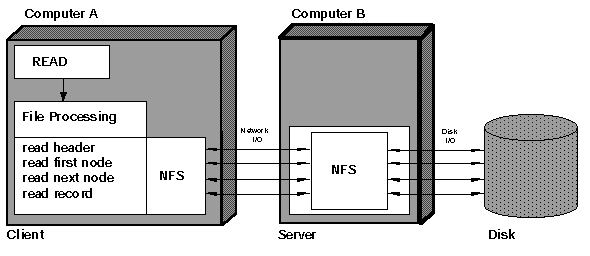

Processing a READ using NFS.

Using RPC, AcuServer executes file I/O requests with a single network transaction. In this way, AcuServer minimizes network overhead, resulting in superior performance.

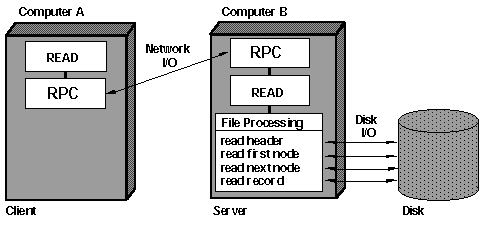

Processing a READ using AcuServer.
